 | ・Height: 10% reduction (27 mm: Current model 30 mm) ・Product weight: 22% reduction (298 g: Current model 380 g) ・Allowable kinetic energy: 64% improvement (0.09 J: Current model 0.055 J) |
| Type | Series | Action | Bore size (mm) |
|---|---|---|---|
| Double ported type | MXQ□A | Double acting | 6，8，12，16，20，25 |
| Low thrust with high rigidity type | MXQ□B | Double acting | 6，8，12，16，20 |
| Single side ported type | MXQ□C | Double acting | 8，12 |
| Height interchangeable type | MXQ | Double acting | 6，8，12，16，20，25 |

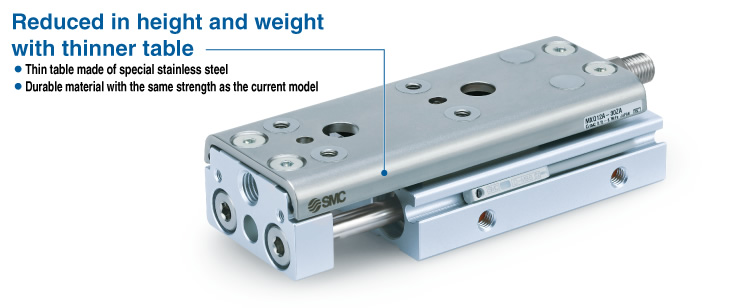

Reduced in height: 10% reduction (27 mm reduction, Current model: 30 mm)
Product weight: 22% reduction (298 g, Current model: 380 g)
Allowable kinetic energy: 64% improvement (0.09 J, Current model: 0.055 J)
∗ Comparison between the double-ported type and the current MXQ12-30 (without adjuster)

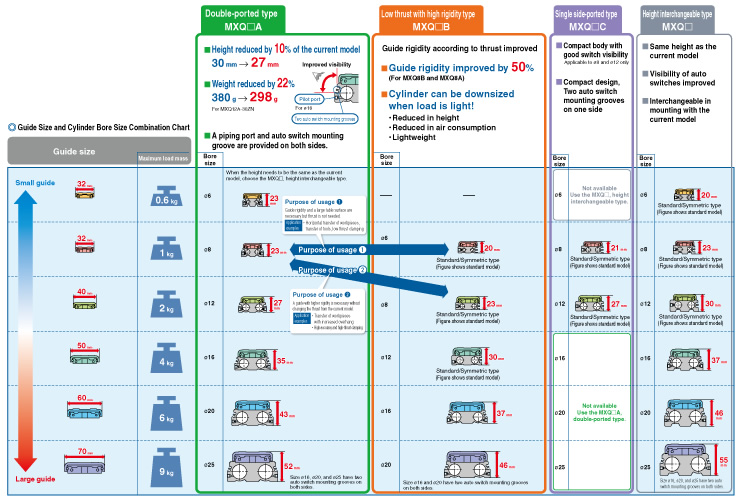

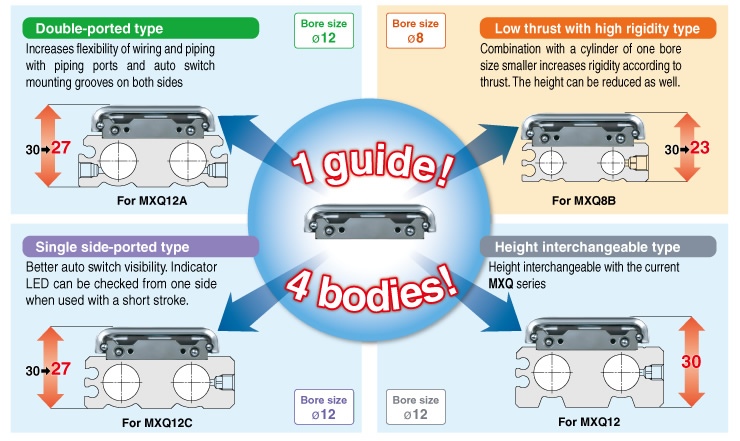

Select the best actuator with guide according to the application.

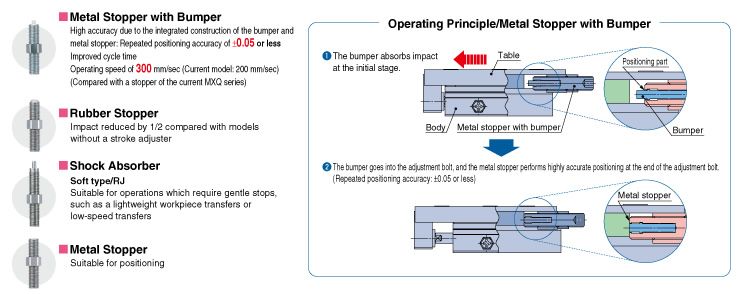

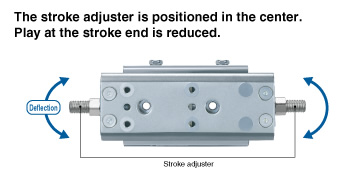

Stroke adjuster (Option)

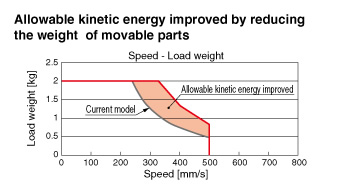

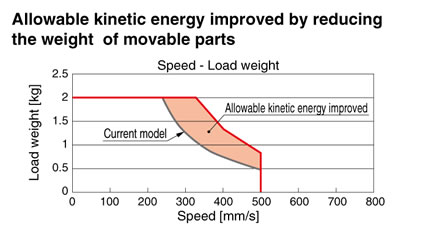

Allowable kinetic energy improved

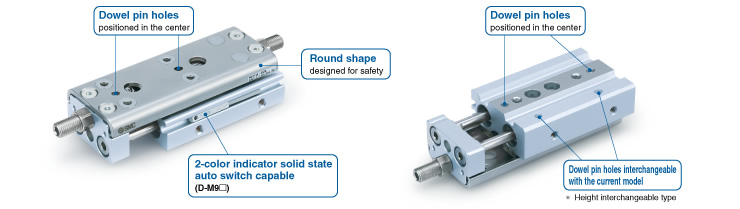

Table configuration for better function and easier maintenance

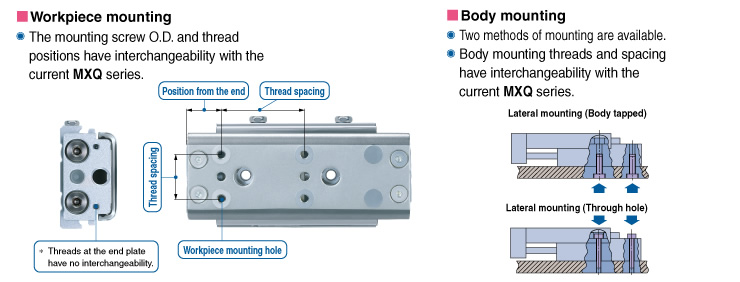

The mounting dimensions are equivalent to the current MXQ series.

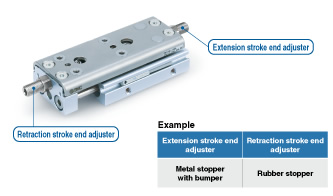

Various stroke adjusters (Option)

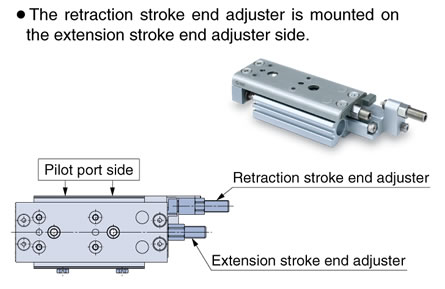

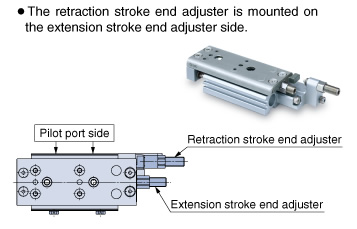

It is possible to combine an extension stroke end adjuster and a retraction stroke end adjuster.

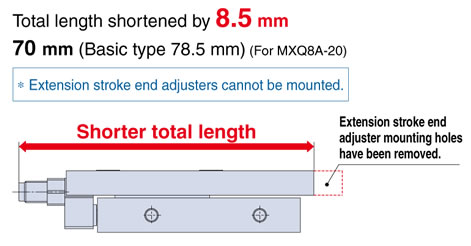

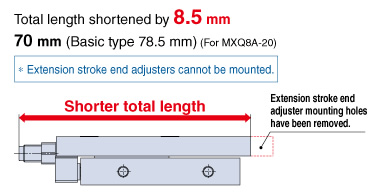

Shorter total length type table is now available.

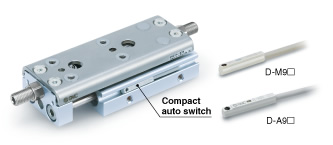

Compact auto switch is now available.
・Reed auto switch: D-A9□, D-A9□V
・Solid state auto switch: D-M9□(A), D-M9□W
Made to order options have been added. New
・Dual stroke specification
・Side adjuster specification
・Combined use of shock absorber + metal stopper, etc.

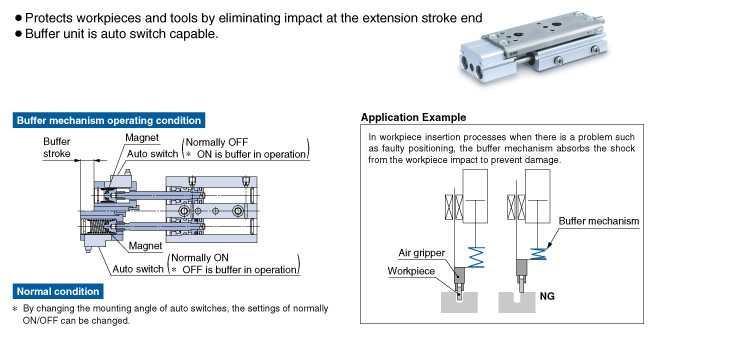

With buffer mechanism

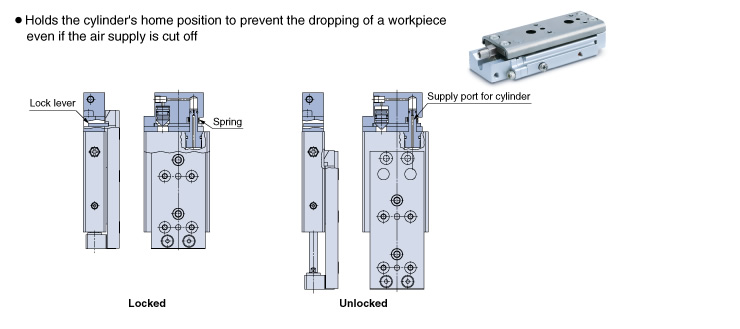

With end lock
Axial piping

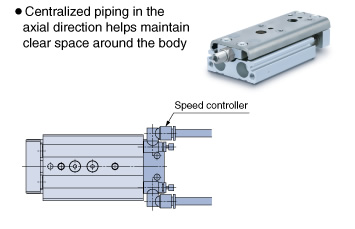

Centralized adjuster
Air Slide Table MXQ
