Mechanical Valves/Transmitters
2/3-Port Mechanical Valve with One-touch Fitting VM100F
 | ・Built-in One-touch fitting reduced installation space and less piping work ・Space saving Built-in One-touch fitting Approx. 35% reduction (25.8 mm shorter) ・Lightweight With resin body material 80% reduction (48 g lighter) ・Less man-hours replacing the actuator Mounting using a clip makes replacement easier. |
| Description | Series | Number of ports |
|---|---|---|
| Mechanical valve | VM100F | 2/3 ports |

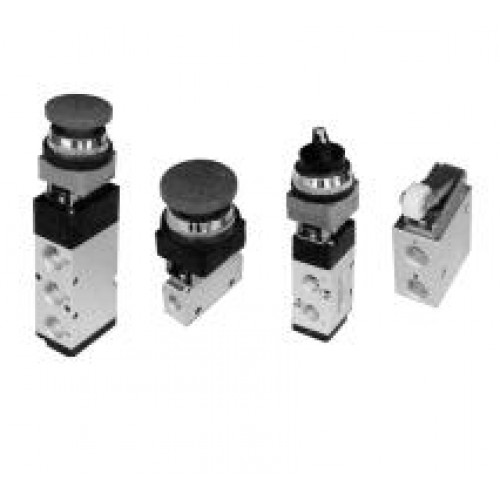

Mechanical Valve VM/VZM/VFM
 | ・A wide variety of valves are available for all types of air systems. ・Small mounting space with a compact body |
| Description | Series | Number of ports |
|---|---|---|
| Mechanical valve | VM1000 | 2/3 ports |
| Mechanical valve | VM100，VM200 | 2/3 ports |
| Mechanical valve | VM400 | 3 ports |
| Mechanical valve | VZM500，VZM400 | 5 ports |
| Mechanical valve | VFM300，VFM200 | 5 ports |
| Mechanical valve | VM800 | 3 ports |
Transmitters VR
 | ・Air transmitters used for a variety of All-Air Systems |
| Description | Model |
|---|---|
| Relay valve | VR4151，4152 |
| Shuttle valve | VR1210，1220 VR1210F，VR1220F |
| AND valve | VR1211F |
| Time delay valve | VR2110 |
| Pneumatic Indicator | VR3100，3110 |
| Pneumatic-electric relay | VR3200，3201 |
Two Hand Control Valve VR51
 | ・Equipment featuring a safety circuit ・When starting an operation, accidents, such as fingers being caught, can be prevented by requiring both hands to start push button operated valves. ・An output requires synchronized two-handed operation. (within 0.5 s) |
| Model | Sonic conductance：C | Port size Metric size | Port size Inch size | Applicable tubing material |
|---|---|---|---|---|
| VR51 | 0.3 dm3/(s・bar） | φ6 | φ1/4 | Nylon Soft nylon Polyurethane FR soft nylon FR double layer FR double layer polyurethane |
Mechanical Valves / Transmitters
- Product Code: Mechanical Valves / Transmitters
- Availability: In Stock
