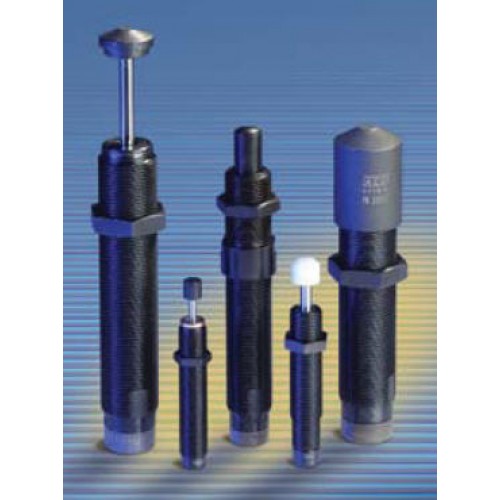

ACE Miniature Shock Absorbers are maintenance free, self-contained hydraulic components. If you prefer a fully adjustable shock absorber rather than a self - compensating model on your application then the MA Series provide a directly interchangeable alternative. The adjustable series include an integrated mechanical stop from model MA 225 upwards.

MA225M

Progressive adjustment

Adjustable
Energy capacity 300 in-lbs/Cycle
Stroke 0.75 in

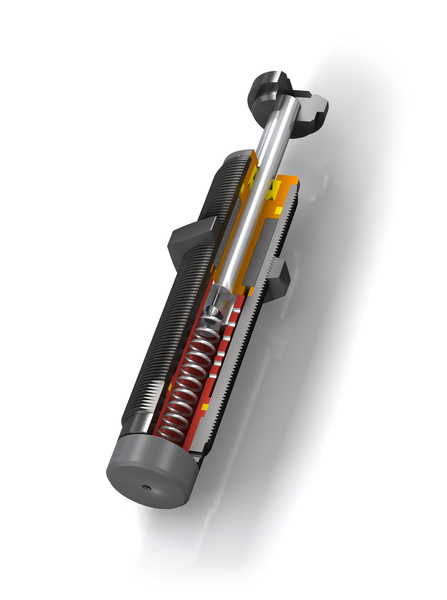

Exact adjustment: The miniature shock absorbers from the MA30 to 900 series can be adjusted and precisely adapted to your requirements. For example, the MA150 displays the rolling diaphragm technology from the MC150 to 600 series and offers all of the advantages of this technology, such as use in pressure chambers. Thanks to long strokes (including 40 mm on the MA900) lower reaction forces result, which provide a soft damping characteristic.
All variations of these units are maintenance-free, ready-to-install machine elements and have an integrated positive stop. They provide the best service where application data changes, where the calculation parameters are not clear or where maximum flexibility in the possible usage is required.

These adjustable miniature shock absorbers from ACE can be used to precisely meet the customer's application needs and are therefore found everywhere in industrial, automation and machine engineering and many other applications.
