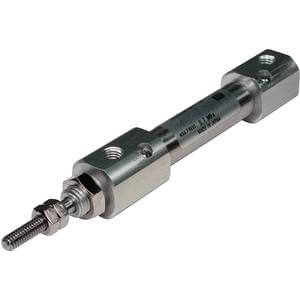

Air Cylinder:Standard Type Double Acting,Single Rod Series CJ2 Ø6,Ø10,Ø16
 |

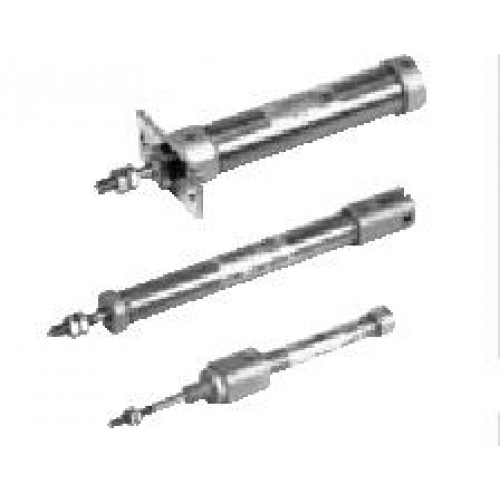

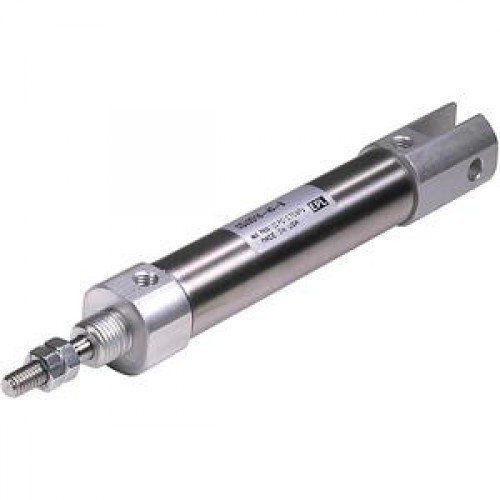

C(D)J2, Air Cylinder, Double Acting, Single Rod
Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless steel rods. The series is available in bore sizes 6, 10, 16mm and stroke lengths from 1/2" to 8". Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable
- Standard double acting single rod
- Bore sizes: 6, 10, 16 (mm)
- Strokes from 15mm through 200mm depending upon bore size
- Mounts: basic, foot, front flange, double clevis
- Variety of switches and a variety of lead wire lengths
 |

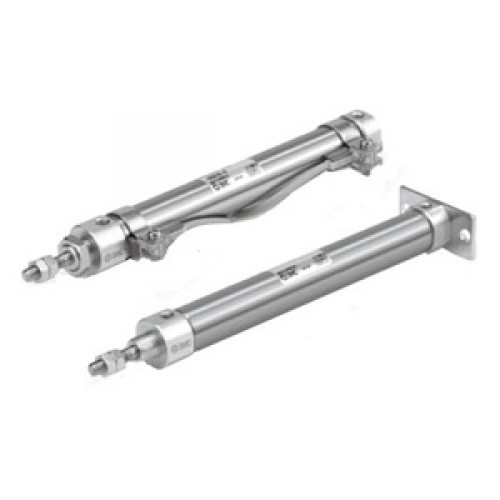

C(D)J2-Z, Air Cylinder, Double Acting, Single Rod
Series CJ2-Z double acting, single rod, stainless steel tube, air cylinders are available in 10 and 16mm bore sizes with stroke lengths from 15mm to 200mm. Available in 7 mounting types for versatility. Optional features include air cushion, port location and magnet for auto-switch capability. Pivot and rod end brackets can be ordered with the cylinder under one part number.
- Easy fine adjustments of auto switch position
- Mounting types added: Double foot, Head Flange, Double-side Bossed
- Rod end deflection accuracy improved
 |

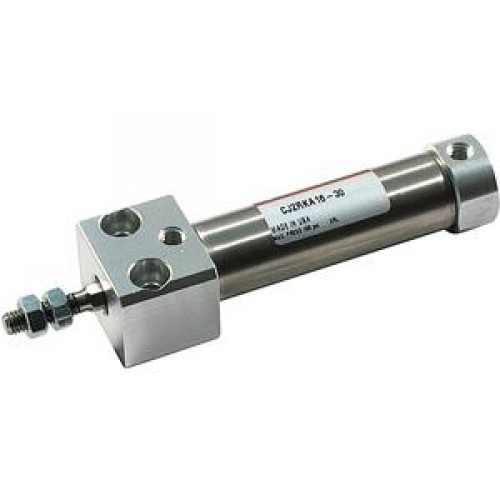

C(D)J2, Air Cylinder, Single Acting, Single Rod
Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless steel rods. The series is available in bore sizes 6, 10, 16mm and stroke lengths from 1/2" to 8". Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable
- Spring extend or spring return
- Bore sizes: 6, 10, 16 (mm)
- Strokes from 15mm through 150mm
- Mounts: basic, foot, front flange, double clevis
- Variety of switches and a variety of lead wire lengths
 |
C(D)J2Z, Air Cylinder, Double, Acting, Single Rod, Built-in Speed Control
Series CJ2 miniature cylinders available in spring return, spring extend, or double acting offer stainless steel tubing and stainless steel rods. The series is available in bore sizes 6, 10, 16mm and stroke lengths from 1/2" to 8". Mounting options include basic, foot, front flange, and double rear clevis. Series CJ2 is auto switch capable
- Double acting single rod w/ built in speed controller
- Bore sizes: 10, & 16 (mm)
- Strokes from 15mm through 200mm
- Mounts: basic, foot, front flange, double clevis
- Variety of switches and a variety of lead wire lengths
Air Cylinder:Standard Type Double Acting,Single Rod C(D)J2 Ø6,Ø10,Ø
- Product Code: C(D)J2
- Availability: In Stock
-
-
