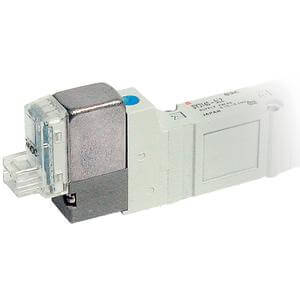

SY3000, 5 Port Solenoid Valve, All Types

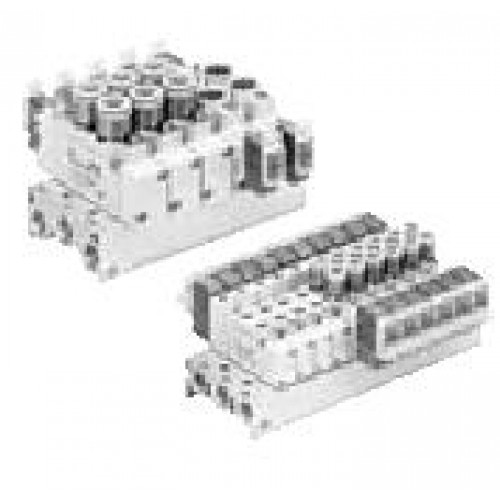

Series SY offers major advances in valve performance for cost-effective solutions to your requirements. The series offers high flow with low power consumption in a compact design. The SY is available in body ported or base mounted styles and can be used individually or manifold mounted.

• Fluid: air
• Operating pressure range: (internal pilot) 0.1 - 0.7MPa
  (external pilot) -100kPa to 0.7MPa
  (external pilot, pilot pressure range) 0.25 - 0.7MPa
• Effective area mm ² (Cv): body ported 4.14 (0.23);
  base mounted 5.4 (0.3)
• Coil rated voltage: 3, 5, 6, 12, 24VDC;
  100, 110, 200, 220VAC
• Response time (0.5MPa) w/o indicator light &
  surge voltage suppressor: 15ms or less
• Ambient & fluid temperature: 50°C
