Miniature stucture requires little mounting space. Built-in hose nipple connection. Piping option : Side Piping, bottom piping over travel after actuation (Mechanical Operated Types)
 |

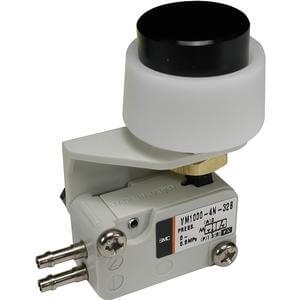

VM1000, Micro Mechanical Valve

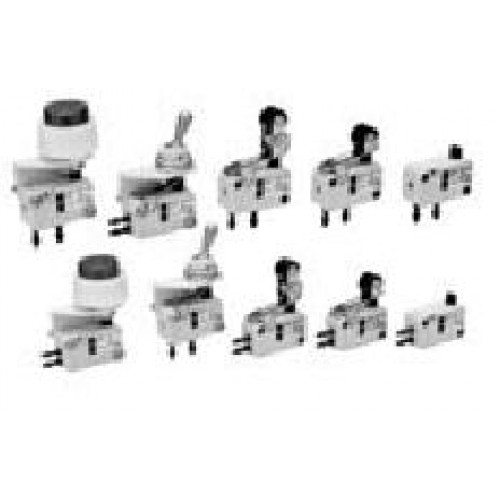

The VM series is a mechanical, poppet valve. Their compact size requires little mounting space. The VM series offers a wide variety of actuator styles and flow capacity up to 1.0 Cv.
- Fluid: air
- Operating pressure: 5 to 0.8MPa
- Effective area (Cv): 1mm 2 (0.055)
- Style of valve: N.C. poppet
- Number of ports: 2 or 3
- Piping: side or bottom
VM1000, Micro Mechanical Valve Micro Mechanical Valve Series VM1000
- Product Code: VM1000
- Availability: In Stock
-
-
