Maximum valve-turnover frequency:1,000 Hz(Supply pressure at 0.2 MPa)

Response time/ON response:0.9±0.15 ms

Service life:1 billion times or more

Manifold available as a standard feature(Up to 32 stations)

Flow rate:120L(Normally open, Supply pressure at 0.4 MPa)

With one-touch fittings

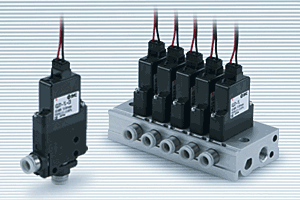

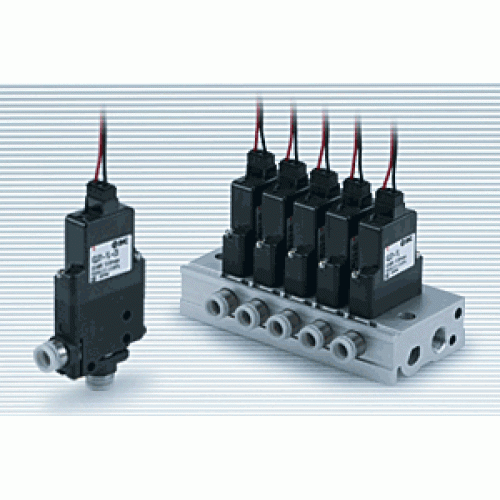

High Speed 2 Port Valve

Need Adobe® Reader®?

SX10 Series

• High speed response : ON/0.45 ms, OFF/0.4 ms (±0.05 ms)
• Long service life : 5 billion cycles or more
• High frequency : 1200Hz
• Width : 9mm
• Low power consumption : 4W

• High Speed Response

ON 0.45 ms, OFF 0.4 ms (±0.05ms)

• Durability: 5 billion cycles	• Low Power consumption: 4W
SMC's original design of valve and coil structure realizes a longer product life and require less maintenance	Possible for continuous energization for extended periods
• High frequency: 1200 Hz	• 2 Mounting types

• Compact and Space-saving

• Reduction in labor cost (Quick Disconnect Type)	• Coil temperature rise (5°C)
	• Filter available as option

• Variations

All models have the same body size
