ADEX Series

5 Port Solenoid Valve A05, 12, 20 Series Features:
3 Port Solenoid Valve A00 Series Features:
Body width remains the same, but the flow rate 1.5 to 3 times more than conventional valves

ADEX Series — PR Series
Double solenoid arranged on both sides of main valve
» Read More …

ADEX Series — GF Series
Double solenoid arranged on the same side of main valve
» Read More …

ADEX Series — 00S Series
» Read More …

ADEX Series — PR Series

5 Port Pilot Operated Solenoid Valve A05P Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
 A05PS25 Sub-base mounting 5 Single 2 Rc1/8 5.8 0.15~0.7
(1.5~7)
A05PD25 Double 0.1~0.7
(1~7)
 A05PD35 3•Closed center 4.5 0.2~0.7
(2~7)
 A05PE35 3•Exhaust center
 A05PO35 3•Pressure center 6.7

● Voltage/ AC110(50/60Hz), DC24V
● Wiring/Plug-in connector

Icon

A05P Catalog

1 file(s)   1.15 MB
Icon

A05P 2D CAD

1 file(s)   482.09 KB
Icon

A05P 3D CAD

1 file(s)   1.72 MB

5 Port Pilot Operated Solenoid Valve A05R Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A05RS25 In-line mounting 5 Single 2 M5 4 0.15~0.7
(1.5~7)
A05RD25 Double 0.1~0.7
(1~7)
A05RD35 3•Closed center 3.7 0.2~0.7
(2~7)
A05RE35 3•Exhaust center
A05RO35 3•Pressure center 4.5

● Voltage/ AC110(50/60Hz), DC24V
● Wiring/Plug-in connector

Icon

A05R Catalog

1 file(s)   1.21 MB
Icon

A05R 2D CAD

1 file(s)   1.28 MB
Icon

A05R 3D CAD

1 file(s)   4.89 MB

Individual Wiring Type Manifold MF☐-A05P/R
.

Type of Manifold For A05P Series For A05R Series
MFC☐-A05P MFS☐-A05P MFX☐-A05P MFU☐-A05R
common P, common R, Pilot valve captured exhaust A & B ports on side Compact type common P, common R, Pilot valve captured exhaust A & B ports on side common P, common R, Common external pilot, Pilot valve captured exhaust A & B ports on side Compact type common P, common R, Pilot valve captured exhaust A & B ports on valve body
Port size P & R port Rc⅛ Rc⅛ Rc⅛ Rc⅛
A & B port M5, C4, C6 Rc⅛ Rc⅛,C4, C6 M5, C4, C6
Y port — — M5 —
X port — — M5 —
 Number of stations 2~20
Mounting Direct mount
 Mountable Solenoid Valve A05PS25
A05PD25
A05PD35
A05PE35
A05PO35		 A05PS25
A05PD25
A05PD35
A05PE35
A05PO35		 A05PS25X
A05PD25X
A05PD35X
A05PE35X
A05PO35X		 A05RS25
A05RD25
A05RD35
A05RE35
A05RO35
Blank plate A05P-BP A05R-BP
Icon

MF☐-A05P/R Catalog

1 file(s)   1.02 MB
Icon

MF☐-A05P/R 2D CAD

1 file(s)   1.44 MB
Icon

MF☐-A05P/R 3D CAD

1 file(s)   3.66 MB



5 Port Pilot Operated Solenoid Valve A12P Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A12PS25 Sub-base mounting  5 Single 2 Rc1/4 11.1 0.15~0.7
(1.5~7)
A12PD25 Double 0.1~0.7
(1~7)
A12PD35 3•Closed center 7.6 0.2~0.7
(2~7)
A12PE35 3•Exhaust center
A12PO35 3•Pressure center 14.1

● Voltage/ AC110(50/60Hz), DC24V
● Wiring/Plug-in connector

Icon

A12P Catalog

1 file(s)   1.44 MB
Icon

A12P 2D CAD

1 file(s)   518.96 KB
Icon

A12P 3D CAD

1 file(s)   2.12 MB

5 Port Pilot Operated Solenoid Valve A12R Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A12RS25 In-line mounting 5 Single 2 Rc1/8 8.8 0.15~0.7
(1.5~7)
A12RD25 Double 0.1~0.7
(1~7)
A12RD35 3•Closed center 8.5 0.2~0.7
(2~7)
A12RE35 3•Exhaust center
A12RO35 3•Pressure center 12

● Voltage/ AC110(50/60Hz), DC24V
● Wiring/Plug-in connector

Icon

A12R Catalog

1 file(s)   1.65 MB
Icon

A12R 2D CAD

1 file(s)   2.05 MB
Icon

A12R 3D CAD

1 file(s)   8.48 MB

Individual Wiring Type Manifold MF☐-A12P/R
.

Type of Manifold For A12P Series For A12R Series
MFS☐-A12P MFX☐-A12P MFU☐-A12R
common P, common R, Pilot valve captured exhaust A & B ports on side common P, common R, Common external Pilot, Pilot valve captured exhaust A & B ports on side common P, common R, Pilot valve captured exhaust A & B ports on valve body
Port size P & R port Rc¼ Rc¼ Rc¼
A & B port Rc¼, C6, C8 Rc¼, C6, C8 Rc⅛, C6, C8
Y port — M5 —
X port — M5 —
  Number of stations 2~20
Mounting Direct Mount
 Mountable Solenoid Valve A12PS25
A12PD25
A12PD35
A12PE35
A12PO35		 A12PS25X
A12PD25X
A12PD35X
A12PE35X
A12PO35X		 A12RS25
A12RD25
A12RD35
A12RE35
A12RO35
Blank plate A12P-BP A12R-BP
Icon

MF☐-A12P/R Catalog

1 file(s)   750.98 KB
Icon

MF☐-A12P/R 2D CAD

1 file(s)   801.42 KB
Icon

MF☐-A12P/R 3D CAD

1 file(s)   1.97 MB

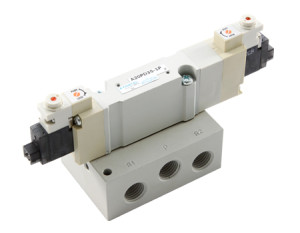

5 Port Pilot Operated Solenoid Valve A20P Series​
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A20PS25    Sub-base mounting 5 Single 2 Rc1/4、 Rc3/8 20.6 0.15~0.7
(1.5~7)
A20PD25 Double  0.1~0.7
(1~7)
 A20PD35 3•Closed center 15.9  0.2~0.7
(2~7)
A20PE35 3•Exhaust center
 A20PO35 3•Pressure center 20.5

● Voltage/ AC110(50/60Hz), DC24V
● Wiring/Plug-in connector

Icon

A20P Catalog

1 file(s)   1.41 MB
Icon

A20P 2D CAD

1 file(s)   458.30 KB
Icon

A20P 3D CAD

1 file(s)   1.90 MB

5 Port Pilot Operated Solenoid Valve A20R Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A20RS25 In-line mounting 5 Single 2 Rc1/4 17.6 0.15~0.7
(1.5~7)
A20RD25 Double 0.1~0.7
(1~7)
A20RD35 3•Closed center 15.7 0.2~0.7
(2~7)
A20RE35 3•Exhaust center
A20RO35 3•Pressure center 18.1

● Voltage/ AC110(50/60Hz), DC24V
● Wiring/Plug-in connector

Icon

A20R Catalog

1 file(s)   2.06 MB
Icon

A20R 2D CAD

1 file(s)   2.02 MB
Icon

A20R 3D CAD

1 file(s)   8.70 MB

Individual Wiring Type Manifold MF☐-A20P/R
.

Type of Manifold For A20P Series For A20R Series
MFS☐-A20P MFX☐-A20P MFU☐-A20R
common P, common R, Pilot valve captured exhaust A & B ports on side  common P, common R, Common external pilot, Pilot valve captured exhaust A & B ports on side common P, common R, Pilot valve captured exhaust A & B ports on valve body
Port size P & R port Rc¼ Rc¼ Rc¼
A & B port Rc¼, C8, C10 Rc¼, C8, C10 Rc¼, C8, C10
Y port — M5 —
X port — M5 —
  Number of stations 2~20
Mounting Direct mount
 Mountable Solenoid Valve A20PS25
A20PD25
A20PD35
A20PE35
A20PO35		 A20PS25X
A20PD25X
A20PD35X
A20PE35X
A20PO35X		 A20RS25
A20RD25
A20RD35
A20RE35
A20RO35
Blank plate A20P-BP A20R-BP
Icon

MF☐-A20P/R Catalog

1 file(s)   884.32 KB
Icon

MF☐-A20P/R 2D CAD

1 file(s)   775.47 KB
Icon

MF☐-A20P/R 3D CAD

1 file(s)   1.93 MB



ADEX Series — GF Series

5 Port Pilot Operated Solenoid Valve A05G Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A05GD25 Sub-base mounting 5 Double 2 Rc1/8 5.8 0.1~0.7
(1~7)
A05GD35 3•Closed center 4.5 0.2~0.7
(2~7)
A05GE35 3•Exhaust center
A05GO35 3•Pressure center 6.7

● Voltage/DC24V
● Wiring/Plug-in connector

Icon

A05G Catalog

1 file(s)   1.19 MB
Icon

A05G 2D CAD

1 file(s)   486.54 KB
Icon

A05G 3D CAD

1 file(s)   1.74 MB

5 Port Pilot Operated Solenoid Valve A05F Series
Pilot Operate/ Rubber seal​

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A05FD25 In-line mounting 5  Double 2 M5 4 0.1~0.7
(1~7)
A05FD35 3•Closed center 3.7 0.2~0.7
(2~7)
A05FE35 3•Exhaust center
A05FO35 3•Pressure center
4.5

● Voltage/DC24V
● Wiring/Plug-in connector

Icon

A05F Catalog

1 file(s)   1.79 MB
Icon

A05F 2D CAD

1 file(s)   1.72 MB
Icon

A05F 3D CAD

1 file(s)   6.50 MB

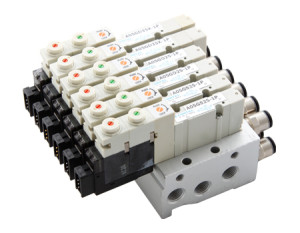

Individual Wiring Type Manifold MF☐-A05G/F
.

Type of Manifold For A05G Series For A05F Series
MFC☐-A05G MFS☐-A05G MFX☐-A05G MFU☐-A05F
common P, common R, Pilot valve captured exhaust A & B ports on side Compact type common P, common R, Pilot valve captured exhaust A & B ports on side common P, common R, Common external pilot, Pilot valve captured exhaust A & B ports on side common P, common R, Pilot valve captured exhaust A & B ports on valve body
Port size P & R port Rc⅛ Rc⅛ Rc⅛ Rc⅛
A & B port M5, C4, C6 Rc⅛ Rc⅛, C4, C6 M5, C4, C6
Y port — — M5 —
X port — — M5 —
  Number of stations 2~20
Mounting Direct mount
 Mountable Solenoid Valve A05GS25
A05GD25
A05GD35
A05GE35
A05GO35		 A05GS25
A05GD25
A05GD35
A05GE35
A05GO35		 A05GS25X
A05GD25X
A05GD35X
A05GE35X
A05GO35X		 A05FS25
A05FD25
A05FD35
A05FE35
A05FO35
Blank plate A05P-BP A05R-BP
Icon

MF☐-A05G/F Catalog

1 file(s)   871.29 KB
Icon

MF☐-A05G/F 2D CAD

1 file(s)   873.50 KB
Icon

Solenoid Valve MF☐-A05G/F 3D CAD

1 file(s)   2.14 MB



5 Port Pilot Operated Solenoid Valve A12G Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A12GD25 Sub-base mounting 5 Double 2 Rc1/4 11.1 0.1~0.7
(1~7)
A12GD35 3•Closed center 7.6 0.2~0.7
(2~7)
A12GE35 3•Exhaust center
A12GO35 3•Pressure center
 14.1

● Voltage/DC24V
● Wiring/Plug-in connector

Icon

A12G Catalog

1 file(s)   1.33 MB
Icon

A12G 2D CAD

1 file(s)   496.36 KB
Icon

A12G 3D CAD

1 file(s)   2.05 MB

5 Port Pilot Operated Solenoid Valve A12F Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A12FD25 In-line
mounting		 5 Double 2 Rc1/8 8.8 0.1~0.7
(1~7)
A12FD35 3•Closed center 8.5 0.2~0.7
(2~7)
A12FE35 3•Exhaust center
A12FO35 3•Pressure center
 12

● Voltage/DC24V
● Wiring/Plug-in connector

Icon

A12F Catalog

1 file(s)   1.76 MB
Icon

A12F 2D CAD

1 file(s)   2.42 MB
Icon

A12F 3D CAD

1 file(s)   10.35 MB

Individual Wiring Type Manifold MF☐-A12G/F
.

Type of Manifold For A12G Series For A12F Series
MFS☐-A12G MFX☐-A12G MFU☐-A12F
common P, common R, Pilot valve captured exhaust A & B ports on side common P, common R, Common external pilot, Pilot valve captured exhaust A & B ports on side common P, common R, Pilot valve captured exhaust A & B ports on valve body
Port size P & R port Rc¼ Rc¼ Rc¼
A & B port Rc¼, C6, C8 Rc¼, C6, C8 Rc⅛, C6, C8
Y port — M5 —
X port — M5 —
  Number of stations 2~20
Mounting Direct mount
 Mountable Solenoid Valve A12GS25
A12GD25
A12GD35
A12GE35
A12GO35		 A12GS25X
A12GD25X
A12GD35X
A12GE35X
A12GO35X		 A12FS25
A12FD25
A12FD35
A12FE35
A12FO35
Blank plate A12P-BP A12R-BP
Icon

MF☐-A12G/F Catalog

1 file(s)   748.53 KB
Icon

MF☐-A12G/F 2D CAD

1 file(s)   774.83 KB
Icon

MF☐-A12G/F 3D CAD

1 file(s)   1.88 MB

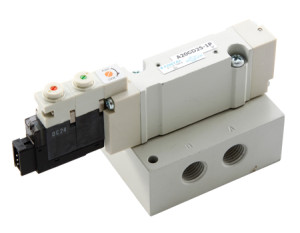

5 Port Pilot Operated Solenoid Valve A20G Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
 A20GD25 Sub-base
mounting		 5 Double  2  Rc1/4、
Rc3/8		 20.6 0.1~0.7
(1~7)
A20GD35  3•Closed center 15.9 0.2~0.7
(2~7)
A20GE35 3•Exhaust center
A20GO35 3•Pressure center 20.5

● Voltage/DC24V
● Wiring/Plug-in connector

Icon

A20G Catalog

1 file(s)   1.50 MB
Icon

A20G 2D CAD

1 file(s)   448.67 KB
Icon

A20G 3D CAD

1 file(s)   1.90 MB

5 Port Pilot Operated Solenoid Valve A20F Series
Pilot Operate/ Rubber seal

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
 A20FD25 In-line
mounting		 5 Dobule  2  Rc1/4 17.6 0.1~0.7
(1~7)
 A20FD35 3•Closed center 15.8  0.2~0.7
(2~7)
A20FE35 3•Exhaust center
A20FO35   3•Pressure center  18.1

● Voltage/DC24V
● Wiring/Plug-in connector

Icon

A20F Catalog

1 file(s)   10.76 MB
Icon

A20F 2D CAD

1 file(s)   2.38 MB
Icon

A20F 3D CAD

1 file(s)   10.48 MB

Individual Wiring Type Manifold MF☐-A20G/F
.

Type of Manifold For A20G Series For A20F Series
MFS☐-A20G MFX☐-A20G MFU☐-A20F
common P, common R, Pilot valve captured exhaust A & B ports on side  common P, common R, Common external pilot, Pilot valve captured exhaust A & B ports on side common P, common R, Pilot valve captured exhaust A & B ports on valve body
Port size P & R port Rc¼ Rc¼ Rc¼
A & B port Rc¼, C8, C10 Rc¼, C8, C10 Rc¼, C8, C10
Y port — M5 —
X port — M5 —
  Number of stations 2~20
Mounting Direct mount
 Mountable Solenoid Valve A20GS25
A20GD25
A20GD35
A20GE35
A20GO35		 A20GS25X
A20GD25X
A20GD35X
A20GE35X
A20GO35X		 A20FS25
A20FD25
A20FD35
A20FE35
A20FO35
Blank plate A20P-BP A20R-BP
Icon

MF☐-A20G/F Catalog

1 file(s)   760.07 KB
Icon

MF☐-A20G/F 2D CAD

1 file(s)   756.19 KB
Icon

MF☐-A20G/F 3D CAD

1 file(s)   1.89 MB

ADEX Series — 00S Series

3 Port Direct Operated Solenoid Valve A00S Series
Direct Operate/ Poppet

Model No Mounting Port Solenoid Position Port size Effective
area
(mm2)		 Pressure
range
MPa
(kgf/cm2)
A00SC23 Sub-base mounting 3 Single 2•NC M3 0.14 0~0.7
(0~7)
 A00SC23J 0.22
 A00SO23 2•NO 0.14 0~0.5
(0~5)
 A00SO23J 0.22

● Voltage/ AC110(50/60Hz), DC24V
● Wiring/Plug-in connector

Icon

A00S Catalog

1 file(s)   1.02 MB
Icon

A00S 2D CAD

1 file(s)   148.79 KB
Icon

A00S 3D CAD

1 file(s)   605.61 KB

Individual Wiring Type Manifold MFS☐-A00S
.

Type of Manifold MFS☐-A00S
common SUP, common EXH, Ports on both sides
Port size Port 1, 3 M5
Port 2 N3, M5
  Number of stations 2~10
 Mounting Direct mount
  Mountable Solenoid Valve A00SO23, A00SO23J, A00SC23, A00SC23J
 Blank plate A00S-BP
Icon

MFS☐-A00S Catalog

1 file(s)   507.37 KB
Icon

MFS☐-A00S 2D CAD

1 file(s)   619.58 KB
Icon

MFS☐-A00S 3D CAD

1 file(s)   1.74 MB

Related Products:

Gripper FCM Sereis Air Cylinder-2 Hi-Rotor F.R.L. Unit
Gripper Air Cylinder Hi-Rotor Air Preparation Equipment Speed Control Joint Fitting
 Air Muffler-SL Series  Exhaust Cleaners  Tubes
Air Muffler Exhaust Cleaner Tube
