Additional Equipment — Sensor Switch Features:
Fontal offers various sensor switch and pressure switch for air cylinder, HI-ROTOR, solenoid valve, air preparation equipment, etc. in order to achieve full automation.
•Stable
•Fast response
Switch Unit For Miniature HI-ROTOR CT Series
Proximity type
Proximity type
| Model No | Load Voltage (V) |
Load current (mA) |
Wiring | Indicator light |
Applicable unit |
| CT-3□ | DC5~30 | 5~200 | Lead wire | Provided | PRN1~30 PRO3~30 |
| CT-3□U | |||||
| CTP-3□ |
● CT3: PNP Specifications

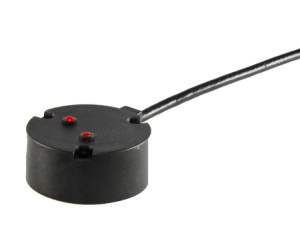

Switch Unit For Miniature HI-ROTOR SR Series
Proximity type
Proximity type
| Model No | Load Voltage (V) |
Load current (mA) |
Wiring | Indicator light |
Applicable unit |
| SR-□ | DC5~30 | 5~200 | Lead wire | Provided | PRN3~30 |
| Model No | Rated voltage (V) |
Rated current range (mA) |
Wiring | Indicator light |
Applicable actuator |
| MA-1 | AC110 | 5~45 | Lead wire | Provided | HI-ROTOR, Z, J, X, K and A series cylinder |
| DC24 | 5~45 | ||||
| MD-1 | DC24 | 25~65 | |||
| MD-3 | DC5~DC6 | 0~50 | |||
| MR | AC,DC5~110 | 0~50 | Not provided | ||
| MA-2L | AC110 | 5~150 | Provided | ||
| MA-2H | AC220 | 5~150 |
M Type Proximity Switch
.
.
| Model No | Rated voltage (V) |
Rated current range (mA) |
Wiring | Indicator light |
Applicable actuator |
| MT-3 | DC5~30 | 5~200 | 3-Lead wire | Provided | Z, J, X, K and A series cylinder |
| MT-3U | |||||
| MT-2 | DC24 (DC10~30) |
2-Lead wire | |||
| MT-2U |
Pressure Switch PS
.
.
| Model No | Pressure setting range MPa(kgf/cm²) |
Hysteresis MPa(kgf/cm²) |
Rated current (A) |
Screw size |
| PS-6-1 | 0.15~1(1.5~10) | 0.05(0.5) | 3(AC125V), 2(DC30V) |
R1/8 |
